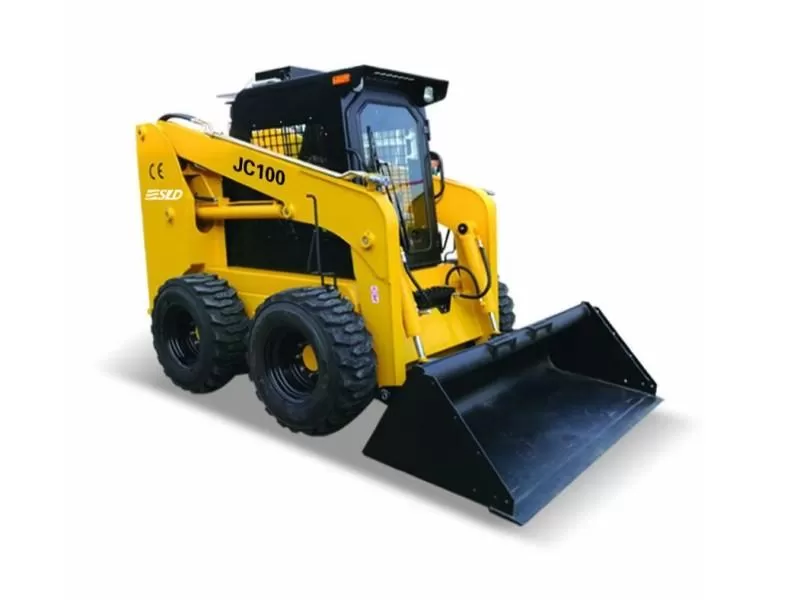

The horsepower of Skid steer loader series covered 25HP-140HP, control system could be mechanical & joystick and electronica etc many ways, there are two type transmission system, low speed chain transmission & high speed gear transmission. For the cabin, we can supply with open cabin and closed cabin with air conditioner etc many options. Also can provide Ultra-narrow, ultra-low special models.
Technical Parameters:
|
Rated Operating Capacity |
1200 |
|
Tipping load(Kg) |
2400 |
|
Bucket Capacity(m3) |
0.4-0.5 |
|
Lifting Force(Kg) |
2200 |
|
Hydraulic Pump Flow(L/min) |
75/125 |
|
Engine power(HP) |
100 |
|
Weight(Kg) |
3800 |
|
Max. Travel Speed(km/h) |
12/18 |
|
Grade ability(° ) |
20 |
|
Tire |
12-16.5 |
|
Fuel/hyd. Oil capacity(L) |
80/80 |
Dimensions
|
A. Height at Maximum Extension |
3780mm |
|
B. Hinge Pin Height |
3150mm |
|
C. Total Height |
2040mm |
|
D. Length with Bucket |
3450mm |
|
E. Length without Bucket |
2540mm |
|
F. Width with Bucket |
1900mm |
|
G. Track Width |
1560mm |
|
H. Wheelbase |
1020mm |
|
J. Ground Clearance |
260mm |
|
K. Dumping Angle ° |
45 |
|
L. Dumping Height |
2400mm |
|
M. Maximum Reach |
700mm |
Skid steer loaders can match kinds of attachments to satisfy customers' different actual working conditions.
