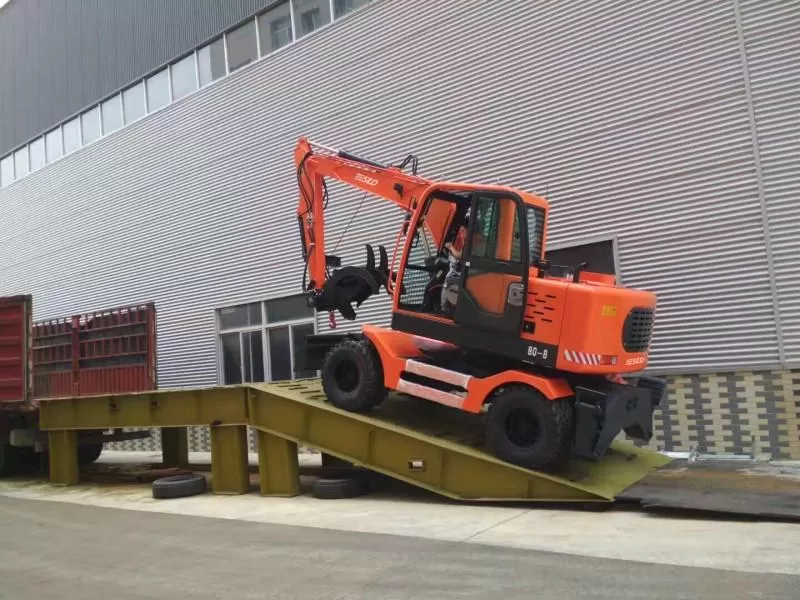

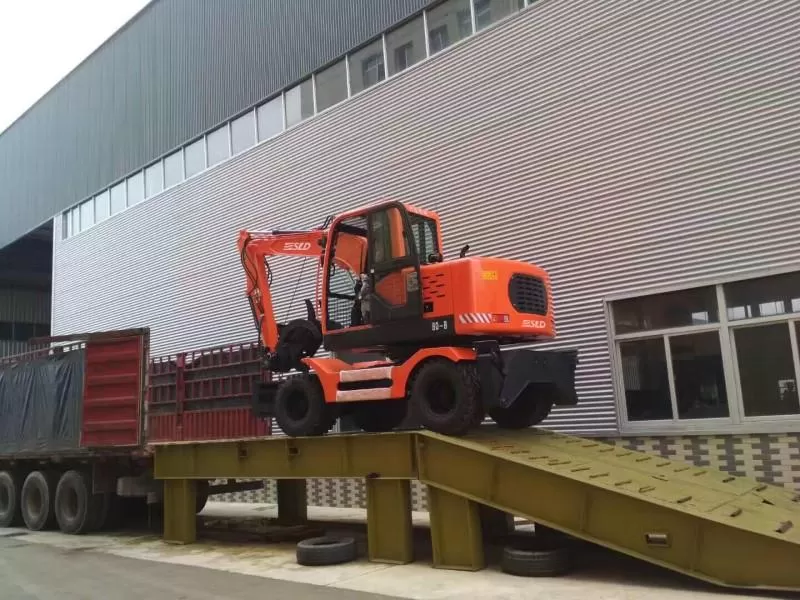

8 ton Wheel crawler excavator grapple loader

Model: XH80W-8

Boom length: 3400 mm

Arm length: 1900 mm

Overall size (LxWxH): 6000x1960x2900 mm

Wheelbase: 2350 mm

Rated power: 50 kw

Operating weight: 6500 kgs

Attachments: bucket, Wood clamp, sugarcane clamp, breaking hammer etc.

Inquiry Now
Product detail

8 ton wheel excavators are excellent products with high configuration, low price and high quality with that are suitable for many different construction, such as road & transportation, cities , municipal administration, gardens, farmland, water conservancy, agriculture, grapple loading, railways etc.

Main Fetures:

1, Adopt Yuchai turbocharging diesel engine, strong power, energy conservation, environmental protection, satisfies the requirement of high efficiency operation.
2. The transmission, hydraulic pump, main valve, rotary motor, hydraulic cylinder, joystick control valve all adopt domestic famous brands.
3, Full hydraulic load sensing steering system, small turning radius, flexible steering, hydraulic system equipped with oil radiator and back pressure protection device, ensure the machine heat balance.
4, Use heavy excavators drive axle, four-wheel drive, spiral bevel gear and wheel planetary wheel deceleration increasing twist, big load capacity, long service life.
5, Use four-wheel drum brake, the rear air tank, 18 times braking pressure strength ratio, safer and more reliable working
6. Double oil cylinder vibration absorber control, optional to match with dozer blade and out trigger, remain in a stable condition during working and walking
7, Cooperate with hercynian institute of Chinese Academy of Sciences "overall structure optimization scheme", verifies the stiffness and strength calculation, fatigue life forecast on the excavator, comprehensive finite element mechanics analysis, structure design optimization, ensure the security of the products use
7.1, Working arm and bucket rod adopt large cross section box structure, high strength, to meet requirements of the heavy work
7.2, Beams on both sides of the slewing platform use D word structure, can resist the external strong shock

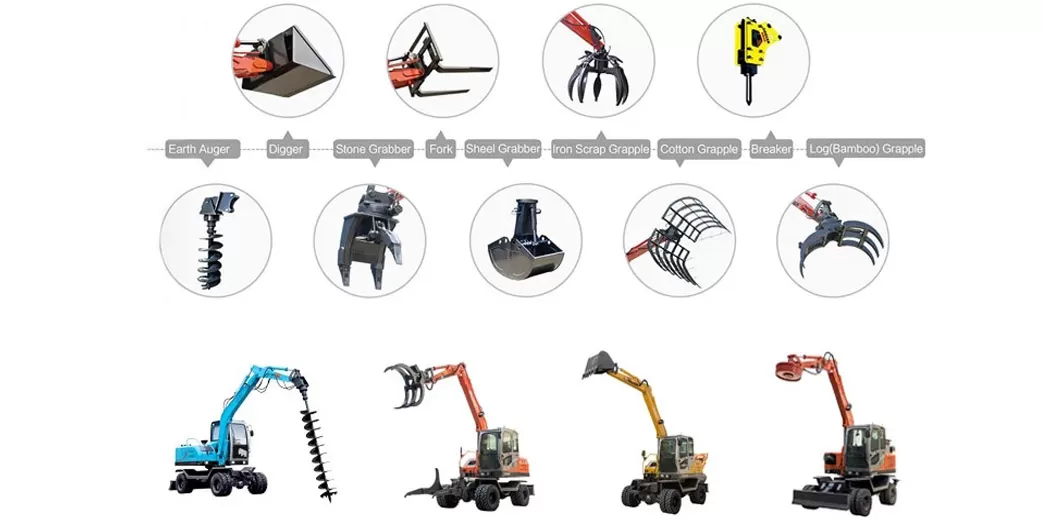

7.3, Standard with bucket, and can be fitted with hammer, wood grab, screw drill, etc. according to customer requirements.
8, With massive deepen heavy tire, front steering axle can swing around the center, have good traction performance and passing performance.
9, Matched with adjustable direction, airline seats, joystick control distributing valve and working device, flexible and convenient manipulation
10, Using domestic high quality electrical components, maintenance-free battery, the wire resistance of flame retardant materials, reliable and durable. Cabin matched with fan, radios, air conditioner, and multifuction electronic monitor
11, The whole machine is beautiful and smooth. Luxury wide view cabin, low noise, good sealing
12, Domestication parts, standardization, cost-effective, parts commonality good easy procurement, daily maintenance is simple and quick.
13, Widely used for digging and short distance transportation in construction, municipal engineering, urban and rural landscape, road traffic, dock, irrigation and water conservancy, etc.

Specifications:

Item

Unit

XH80W-8

Boom length

mm

3400

Arm length

mm

1900

Overall Dimension

Overall length (when delivery)

mm

6000

Overall width

mm

1960

Overall height (cabin)

mm

2900

Overall height (when drive)

mm

2900

Dimension

Wheeltread

front

mm

1525

rear

mm

1525

Wheelbase

mm

2350

Min. ground clearance  (plateform)

mm

1075

Rear tail wing radius

mm

1800

Chassis width

mm

1950

Min. ground clearance( chassis, bottom of transmission)

mm

345

Width ( up-part)

mm

1900

Working Range

Max. digging height

mm

7050

Max. dumping height

mm

5150

Max. digging depth

mm

3230

Max. digging depth (vertical)

mm

2800

Max. digging radius

mm

6563

Max. digging distance

mm

6380

Min.turning radius

mm

2320

Max. height(when Min.turning radius )

mm

5160

Max.ground clearance (when Bolldoze blade up)

mm

300

Max.depth (when Bolldoze blade down)

mm

100

Performance

Operating weight

kg

6500

Bucket capacity

0.2~0.3

Drive speed

Forward II

km/h

4.5

Forward II

km/h

9

Forward III

km/h

16

Forward IV

km/h

26

Forward V

km/h

66

Reward gear

km/h

4.5

Clambing capacity

°

30

Turning speed

rpm

10

Engine

Manufacturer

Xinchai

Model

YC4DK70-T303

Displacement

L

3.621

Rated power / rated speed

kW/rpm

50/2300

Max.torque

N.m/rpm

260/1500

Pump

Type

Gear pump

Flow

L/min

2X57

Main relief valve pressure

MPa

21

Oil type

Fuel oil tank capacity

L

100

Hydraulic oil tank capacity

L

118

Driving part

Tires number

8

Size

8.25-16/16PR

Front axle wing angle

°

8

Attachment

Bucket
