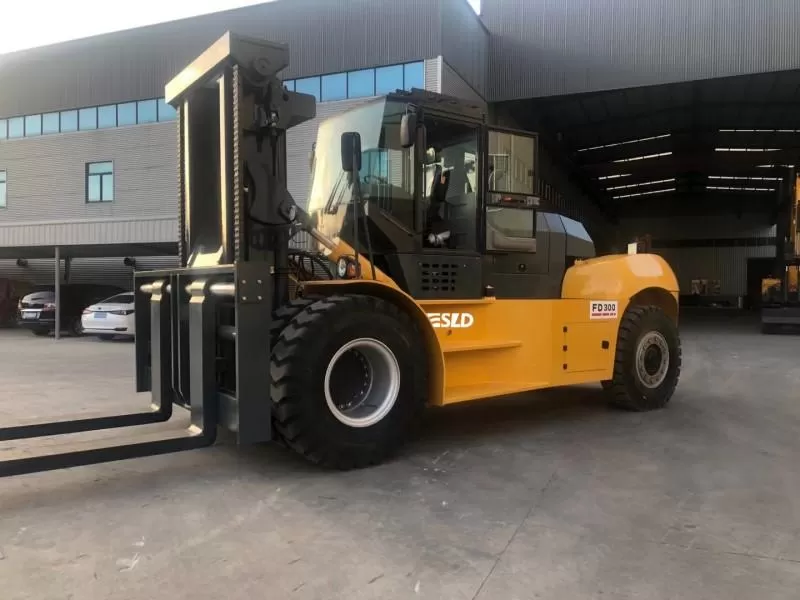

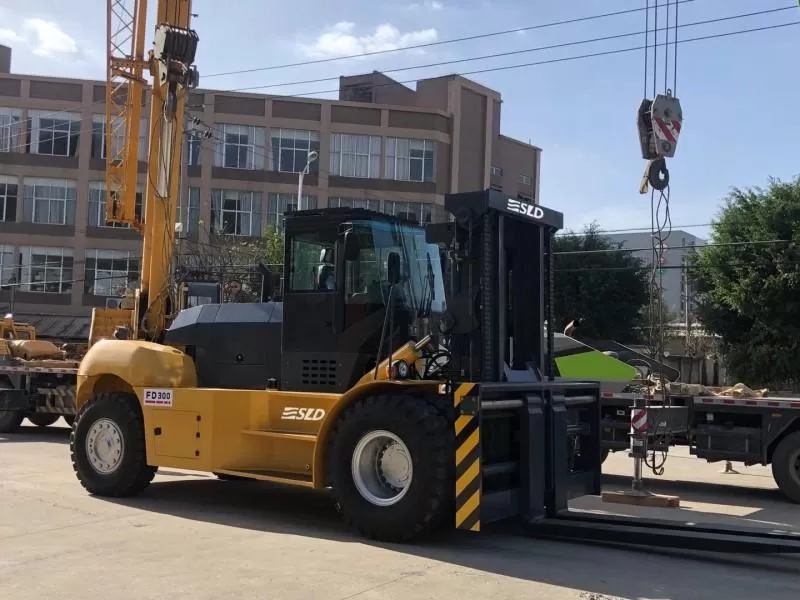

High cost-performance 30 ton container forklift

High cost-performance 30 ton container forklift with mast lifting height 4000mm for 2 high container, mast lifting height 5500mm for stacking 3 high 20ft containers in port in container terminal.

Inquiry Now
Product detail

Main features of 30 tons forklift (Model FD300):

1, Engine: Weichai engine, strong power, energy conservation and environmental protection.

2, Transmission & torque converter: Hydraulic transmission special for heavy-duty forklift, imported technology, reliable performance,convenient maintenance, smooth transmission and convenient operation.

3, Driven axle: Reinforced driven axle, hub reduction, high strength axle case, large load capacity, excellent stability and reliability.

4, Steering system: Adopt transverse oil cylinder type steering bridge, full-hydraulic steering, flexible and light, reliable.

5, Control system: Pilot valve control device to make the work efficiency and reduce drivers’ labor intensity.

6, Hydraulic system: Double pump confluence, small system flow, low power consumption, reliable performance, excellent operating performance

7, Cooling system: Adopt independent transmission oil and hydraulic oil cooling, increasing system stability.

8, Frame structure: Linde type exquisite workmanship &firm box-type frame, improve the transverse, longitudinal stability of vehicles. The vehicle get through the 3D finite element analysis, superior structure, reliable quality, the main welding parts through the nondestructive testing, effective coordination with the reinforced structure、bridge、box.

9, Tyre: Sino-us joint brand, resistant to wear and sting, high strength tyres, bear heavy loaded - safe and reliable.

Parameters:

Vehicle configuration


FD300

Performance

Rated load


30000

Load center


1250

Mast tilt angle (front/rear)

º

6/12

Overall dimensions

Length

mm

9640

Width

mm

3200

Height

mm

4010

Mast lifting height

mm

4000

Fork size (L*W*H)

mm

2400X300X120

Min. turning radius

mm

6600

Max. travel speed (with load)

Km/h

24

Lifting speed (with load)

mm/s

280

Gradeability (with load)

%

20

Weight

Kg

38000

Tyre

Front


4X24.00-32PR

Rear


2X24.00-32PR

Wheel tread

Front

mm

2330

Rear

mm

2140

Wheelbase

mm

4800

Min. ground clearance

mm

350

Engine

Model


WD10G240

Rated power

KW

178

r.p.m


2200

Note: the above data are subject to change without prior notice.
