New economical 16 ton forklift

New economical 16 ton forklift can load 16000 kgs cargoes easily, standard two stage mast lifting height 3000mm, option higher mast lower mast or triplex full free lift mast, strengthen overhead guard or full closed cabin with air conditioner.

Inquiry Now
Product detail

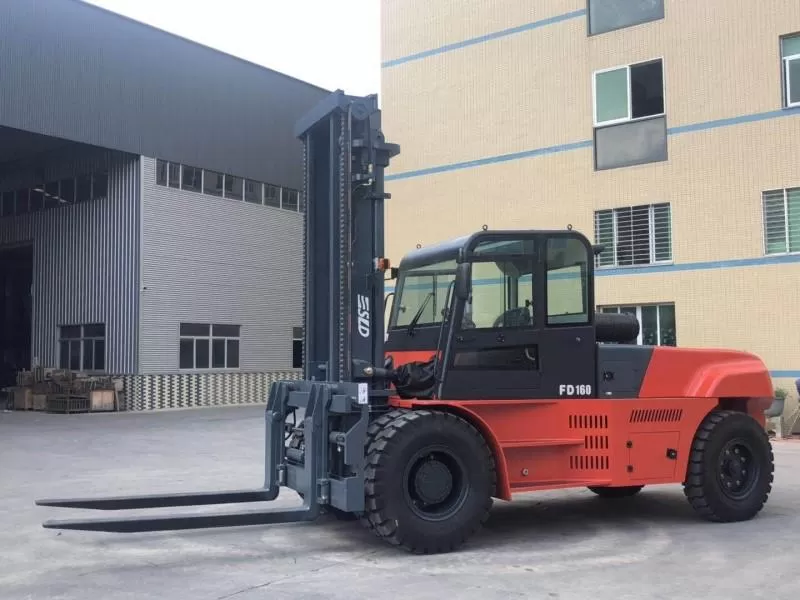

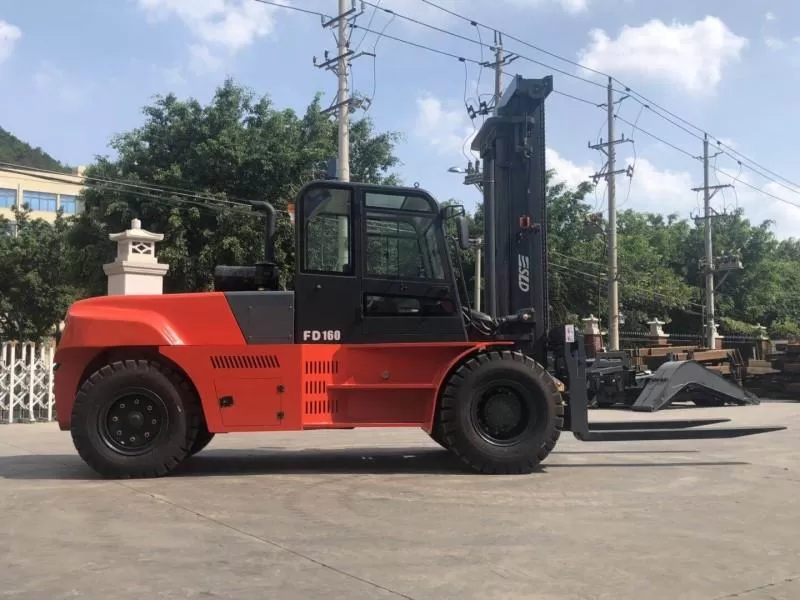

FD160 16 ton forklift

Q: What kind of engine do we use?

A: Yuchai Weichai CUMMINS engine, big power, low consumption, high quality.

Q: How about the steering system?

A: Full-hydraulic steering, flexible and light, reliable.

Q: How about Cooling system?

A: Equipped independent transmission oil and hydraulic oil cooling, increasing system stability.

Q: How about Fork?

A: Standard with hydraulic fork positioner, easy operation and reduce drivers’ labor intensity.

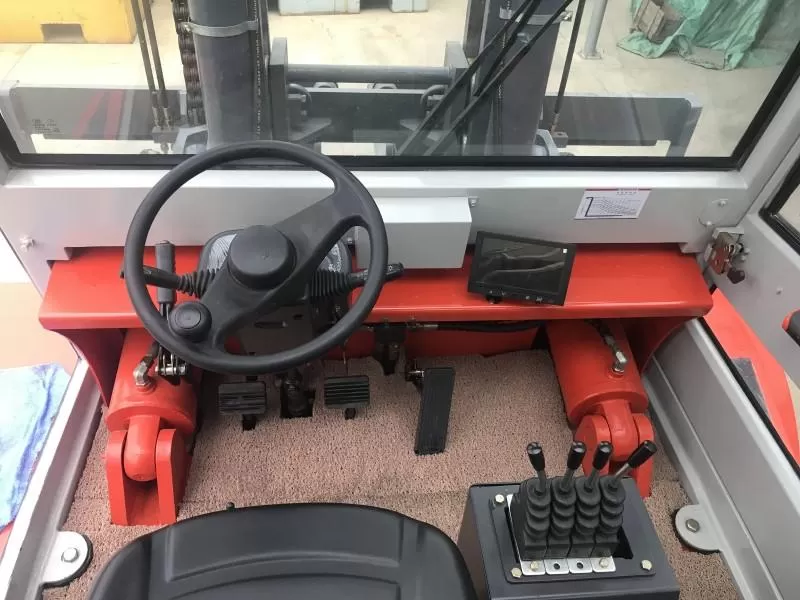

Q: How about Cab?

A: Good vision, with Air Conditioner.

Q: Do you accept customization?

A: OEM/ODM is available

Parameters: Vehicle configuration   FD160
Performance Rated load   16000
Load center   600
Mast tilt angle (front/rear) º 6/12
Overall dimensions Length mm 7200
Width mm 2550
Height mm 3460
Mast lifting height mm 3000
Fork size (L*W*H) mm 1800X200X90
Min. turning radius mm 5050
Max. travel speed (with load) Km/h 22
Lifting speed (with load) mm/s 240
Gradeability (with load) % 20
Weight Kg 18000
Tyre Front   4X12.00-24/20PR
Rear   2X12.00-20/18PR
Wheel tread Front mm 1850
Rear mm 2130
Wheelbase mm 3600
Min. ground clearance mm 270
Engine Model   YC6J175-T302
Rated power KW 129
Max. torque N.m 710

Note: the above data are subject to change without prior notice.
