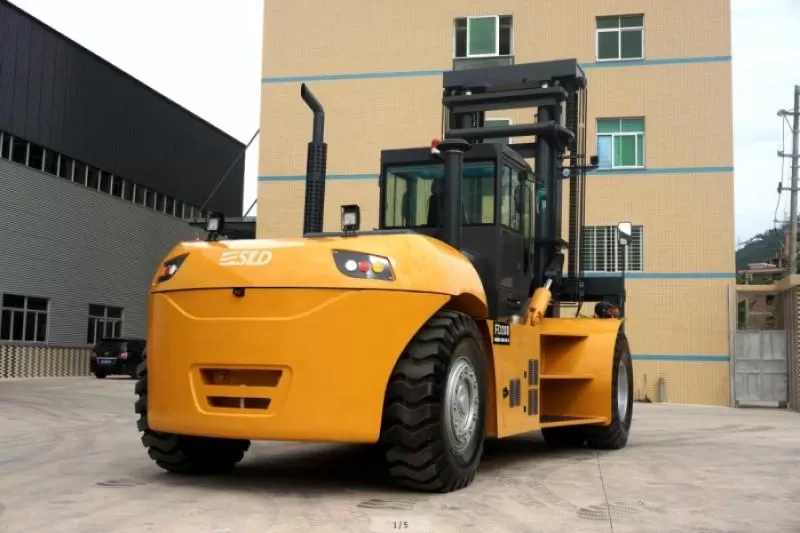

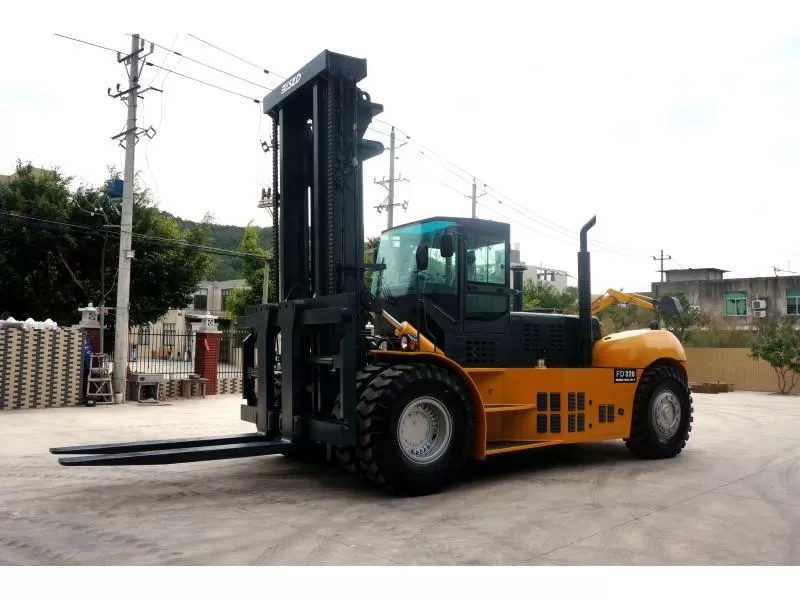

Hot sale 32 ton heavy duty forklift

32 ton diesel type heavy duty forklift with CUMMINS turbocharger engine powerful transmission electric control gearshift, widely use for lifting and stacking full containers and heavy equipments in port terminal operation yard .

Inquiry Now
Product detail

Main features:

Engine: Adopt Cummins or Weichai turbocharging engine, powerful, energy. conservation,environmental protection, satisfies the requirement of high efficiency operation.

Transmission & torque converter: Use hydraulic power shift transmission, big traction in combined operating condition, the transmission system is more reliable. Adopt double turbine hydraulic torque converter, single lever control for the speed changing, easier for operation.
Driven axle: Reinforced heavy duty type driven axle, hub reduction, high strength axle case, large load capacity, excellent stability and reliability.

Steering system: Adopt transverse oil cylinder type steering bridge, full-hydraulic steering, flexible and light, reliable.

Braking system: Use four heavy caliper disc brake, thicken brake disc, the rear air tank. especially have very good thermostability performance when heavy loaded, braking effect stable. heat dissipation faster, reliable and safe operation.

Control system: Pilot valve control device to make the work efficiency and reduce drivers’ labor intensity.

Hydraulic system: Double pump confluence, small system flow, low power consumption, reliable performance, excellent operating performance

Cooling system: Adopt independent transmission oil and hydraulic oil cooling, increasing system stability.

Frame structure: Exquisite workmanship &firm box-type frame, improve the transverse and longitudinal stability of forklifts. The forklifts get through the 3D finite element analysis, superior structure, reliable quality, the main welding parts through the nondestructive testing, effective coordination with the reinforced structure、bridge and frame.

Mast:Box-type internal-external mast, special all-round roller bearings, increase lifting performance.

Cab:With air-conditioning , and rupture membrane, explosion proof, heat insulation, prevent glare, sound insulation,damping luxury cab with sunroof, wide view and comfortable seats, flexible control.

Parameters:

Vehicle configuration


FD320

Performance

Rated load


32000

Load center


1200

Mast tilt angle (front/rear)

º

6/12

Overall dimensions

Length

mm

9640

Width

mm

3200

Height

mm

3960

Mast lifting height

mm

4000

Fork size (L*W*H)

mm

2400X300X120

Min. turning radius

mm

6600

Max. travel speed (with load)

Km/h

24

Lifting speed (with load)

mm/s

280

Gradeability (with load)

%

20

Weight

Kg

40000

Tyre

Front


16.00-25-32PR

Rear


16.00-25-32PR

Wheel tread

Front

mm

2330

Rear

mm

2140

Wheelbase

mm

4800

Min. ground clearance

mm

350

Engine

Model


WD10G240

Rated power

KW

178

Max. torque

N.m

786

Note: the above data are subject to change without prior notice.
